I have been a designer of model and radio yachts since 1968.
Boats been built from my plans now number in the hundreds both from both home and production builders.
Many of my designs have won State and National Championships in Australia and overseas.
New designs are added periodically and occasionally I do receive requests for specific designs.
I also from time to time produce free plans.
Most of my older plans Pre 2000 will eventually be available as PDF files of the original large format drawing. The plans are located here:
A more complete list of my designs is here:

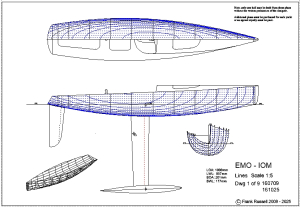

Plans are normally drawn on A4 and A3 format. Sections and appendages are normally drawn full size, 1:1. Some fin and bulb drawings are drawn to be printed in two halves and joined after printing. Arrangement drawings are 1:5 and sometimes 1:4.

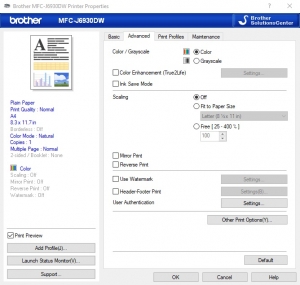

Make sure when printing that the “Scaling” or “Fit to Page” option is turned off in your printer setup when you print. I also have the “Print Preview” turned on as well so I can check if the page size is correct. All drawings are in either A4 or A3 size paper.
Each drawing has a 100mm scale which will allow you to see if the drawings are the correct size.
The PDF drawings are usually emailed within a few hours of receiving your order from Paypal by email. DXF and DWG formats are available for most plans. Just ask and they also will be emailed.
Printed Paper Plans are available and are printed from the same plan as the PDF. Please ask before ordering. There is usually an additional postage charge for Printed Paper Plans.
LATEST PLANS:
The Erebus -10r shape is based on the Ellipsis IOM. The design has the same LCB and waterline as the P6.1, so Phoenix 6 sail plans can be transferred over to the new hull. The hull is more rounded and has more reserve buoyancy above the waterline which will give the hull more lift over waves. The bow profile also has been lifted slightly for the same reason. Hull balance should be excellent. The deck is flat for simplicity and the plans show the same inbuilt mast ram setup I have been using successfully on both my A Class and 6 Metre designs. Any P6 sail plans used may need to be slightly altered. The Erebus sail plans are similar to the P6.1 but have been modified to suit the new deck design.
LOA 1650mm LWL 1200mm BOA 175mm 4.0kg ballast displacement 5.8kg Draught 630mm
$40AUD
After payment is made. I will email you the pdf file. Plan has A3, A4 sheets and a larger sheet with sections designed for laser cutting.
A printed paper plan can be supplied, postage extra.
Ellipsis M Version 2a Marblehead 2018-2024: This design is based on the successful Ellipsis IOM concept, as is the second of two sailing prototypes for the Equation M design. Of the 3 designs produced, this is favourite and was the only hull created by cutting the Ellipsis IOM in half and adding 128mm to the middle section and then re-fairing. The hull was then rescaled to the needed size and shape.
After payment is made. I will email you the pdf file.
If you require another format: DXF, or DWG, 2D or printed paper plan, postage extra.
$30AUD
Equation Marblehead 2019: This design is based on the successful Ellipsis IOM concept, that of correct volume distribution rather than fashionable features with the emphasis on simplicity This design is the result of two Sailing Marblehead prototypes, The Ellipsis 1c and Ellipsis 2a.
After payment is made. I will email you the pdf file.
If you require another format: DXF, or DWG, 2D or printed paper plan, postage extra.
$25AUD
Paperclip Mk3 IOM 2024 The hard chine version of the Ellipsis and Equinox IOM’s. It is intended to be built “Tape and Glue” from 1mm plywood sheets. The PDF and DXF drawings for theses hull and deck panels are included as are the sections if you would like to build the hull over frames. The prototype built by Tony Goldsworthy seems to perform well.
The PDF Plan is on 7 A4 and 2 A3 sheets, The laser cut sheets are on 2 large sheets PDF and DXF. The Plan is also available on DXF, or DWG
$20AUD
Ellipsis 36 2017 is a 36 inch restricted class designs based on the Ellipsis IOM design. The original request for 2017 came from John Fisher who wanted a very heavier 36r for vane sailing. This design is the fourth design in the series, which has progressively become heavier and more successful.
LOA: 938mm LWL: 915mm BOA: 190mm Disp: 5.1kg
PDF Plan emailed or Printed and posted on 6 A4 and A3 sheets
If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.
$15AUD
Ellipsis 36 2023 is a 36 inch restricted class designs based on the Ellipsis IOM design. The 36r design was a request from a UK skipper for a lighter version of the 2017 design for both Radio and vane sailing. This design shuld be more suitable for lighter wind smooth water venues than the 2017.
LOA: 938mm LWL: 915mm BOA: 189mm Disp: 4.4kg
PDF Plan emailed or Printed and posted on 6 A4 and A3 sheets
If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.
$15AUD
Goth 36 2017 is an 36 inch restricted class design based on the Goth IOM design. The original request came from John Fisher in 2013 who wanted a very light 36r for vane sailing. This design is the third design in the series, which has progressively become heavier and more successful.
LOA: 938mm LWL: 915mm BOA: 190mm Disp: 5.1kg
PDF Plan emailed or Printed and posted on 6 A4 and A3 sheets
If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.
$10AUD
New Equinox IOM Plan: The Equinox is a variant of the Ellipsis… IOM. The basic design was produced initially as a 3D printed project that never eventuated for various reasons. Two prototypes were built including a 3D printed boat which was built by John Taylor in the UK. The design incorporates several features of some of the newer IOM shapes including a fuller higher bow profile and wider stern. The design is well balanced and well behaved like the Ellipsis and should be as easy to plank from wood.
Hulls an components for this design are now available. See IOM COMPONENTS Page.
$18AUD
After payment is made. I will email you the pdf file.
Please ask If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, Postage extra.
Phoenix 4 2020 10r Every new design presents a designer with options to consider and directions to go. After a ten year gap from the P3, all 10r’s had adopted the deep keel, light weight approach and although it did seem to work I after the P5 I though that the Phoenix 4 design although fast went in the wrong direction. I always have thought about what I should have done. So this is P4- 2020, with 2020 hindsight is the result.
LOA 1550mm LWL 1250mm BOA 200mm BWL 180mm, 4.2kg ballast on 600mm Draught and P1 to P3, Marblehead style sail plans on a flat deck.
She even drawn in the same software as the original.
$30AUD
After payment is made. I will email you the pdf file. Plan has A3, A4 sheets and a larger sheet with sections deasigned for laser cutting.
Please ask If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, Postage extra.
Goth 36 is an 36 inch restricted class design based on the Goth IOM design. The original request came from John Fisher in 2013 who wanted a very light 36r for vane sailing. this design is the second in the series, heavier and more successful. There is also a later 2017 version which will be published soon.
LOA: 938mm LWL: 899mm BOA: 190mm Disp: 4.4kg
PDF Plan emailed or Printed and posted on 6 A4 and A3 sheets
If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, just ask.
$10AUD
UFO Mk2 – A development of the successful UFO with a heavier displacement and larger sail plan. Improved aft sections with the chine removed.
LOA: 1838mmLWL: 1250mm Disp: 15kg SA: 0.978763 m2
PDF Plan emailed or Printed and posted on 12 A3 sheets
If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.
$35AUD
Phoenix 8 – 10r: The Phoenix MK 8 is a larger more powerful boat than the last three Phoenix Mks. The P8 is a return to the simple design, No chines, no raised fore deck and Marblehead rig profiles as used from P1 to P3. This allows simpler light weight construction and fully open soft decks and shared rigs if you have a Marblehead.
LOA: 1650 mm LWL: 1240mm, BOA: 170mm, Draught: 630 – 680mm, Disp 5.7kg, SA: 1.00 m2
After payment is made. I will email you the pdf file.
If you require another format: DXF, or DWG, 2D or 3D or printed paper plan, postage extra.
$35AUD
The Free updated IOM mast and boom schematic along with FRD IOM Setup Guide
FRD IOM Setup Guide Mast and Booms combined Feb 2020
Epsilon RG65 – 65 2019: This design is based on the successful Ellipsis IOM concept, that of correct volume distribution rather than fashionable features with the emphasis on simplicity and efficiency.
After payment is made. I will email you the pdf file.
Plans are PDF format or printed paper plan only. 3D hull and 2D bow and stern sections in DXF or DWG format are available on request.
$15AUD
Equation Marblehead 2019: This design is based on the successful Ellipsis IOM concept, that of correct volume distribution rather than fashionable features with the emphasis on simplicity This design is the result of two Sailing Marblehead prototypes, The Ellipsis 1c and Ellipsis 2a.
After payment is made. I will email you the pdf file.
Plans are PDF format or printed paper plan only. 3D hull and 2D bow and stern sections in DXF or DWG format are available on request.
$25AUD
Cerberus – 6m Something more of a challenge from a designers and builder’s point of view. A class I have always admired. This is Cerberus, my first published Six Metre design. This is the result of several requests for a design in the class and also a desire on my part build a six Metre for fun sailing locally. There are a couple of boats that will be built in the UK to join the fleet there. This design is intended to excel in moderate winds and will outperform anything of similar size drought and displacement in Australian conditions. Plans are $30 pdf plans from my PLANS page with other formats available. This design may also be available for 3D printing at a later date.
LOA: 1515mm, LWL :1020mm, Displacement: 11.75kg, SA:0.682019m2
After payment is made. I will email you the pdf file.
Plans are PDF format or printed paper plan only. 3D hull and 2D bow and stern sections in DXF or DWG format are available on request.
$30AUD
